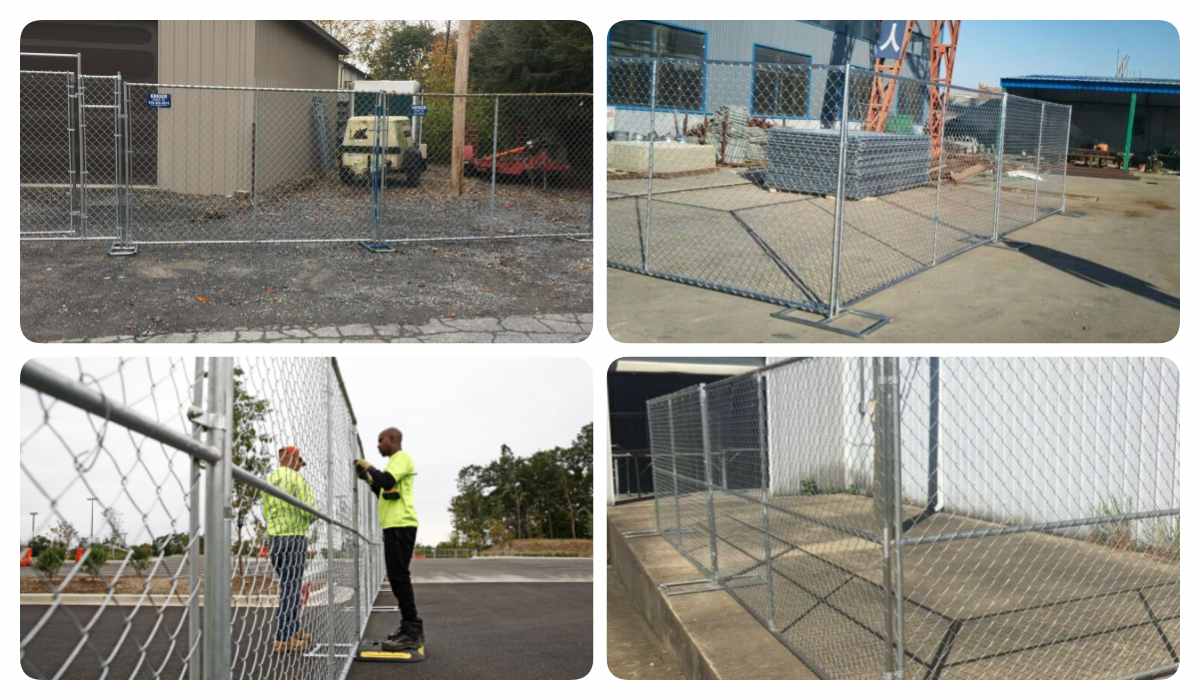

Temporary Chain Link Fence is used to secure construction sites , private property Or residential housing sites,we works on welded mesh temporary fence and chain link mesh temporary fence.
Temporary Chain link fence can be used for Construction Sites and Special Events to keep unauthorized personnel out of danger, protect your equipment from theft and protect important equipment and crowds in a specific area.
| Panel Size | 6ft x 12ft, 6ft x 10ft, 6ft x 8ft, 8ft x10ft, 8ft x 12ft |
| Frame | 1.25″/32 mm, 1.5″/38 mm, 1.6″/40 mm round optional |
| Chain Link Mesh Wire | 9 ga/2.9mm, 10.5 ga/2.7mm, 11 ga/2.3mm, 11.5 ga/2.2mm, 12 ga/2.0mm optional |
| Chain Link Mesh Size | 2″ (50 × 50 mm), 2.25″ (57 × 57 mm), 2.4″ (60 × 60 mm), 2.75″ (70 × 70 mm) optional |
| Cross Brace | Vertical, horizontal brace with 1″/1.25’’ round or the same with frame O.D |

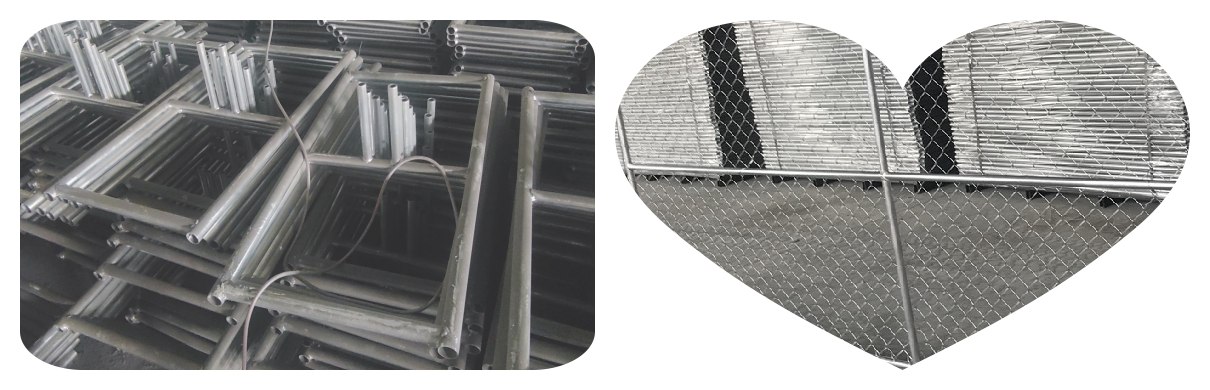

| Treatment | Pre-Galvanized pipe and panel welded,then galvanized spraying or hot dipped galvanized |
| Standard | AS 1725-2010 Chain Link Fabric Security Fences and Gates |
| AS 2423-2002 – Coated Steel Wire Fencing Products for Terrestrial,Aquatic and General Use | |
| AS 54687-2007 – Temporary Fencing and Hoarding |

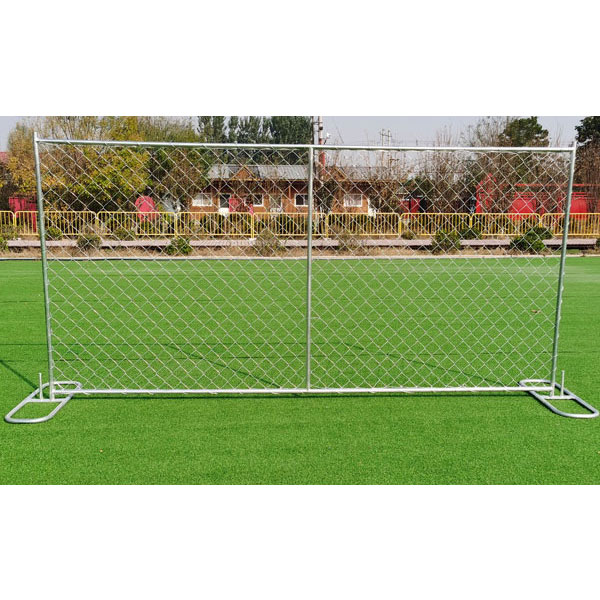

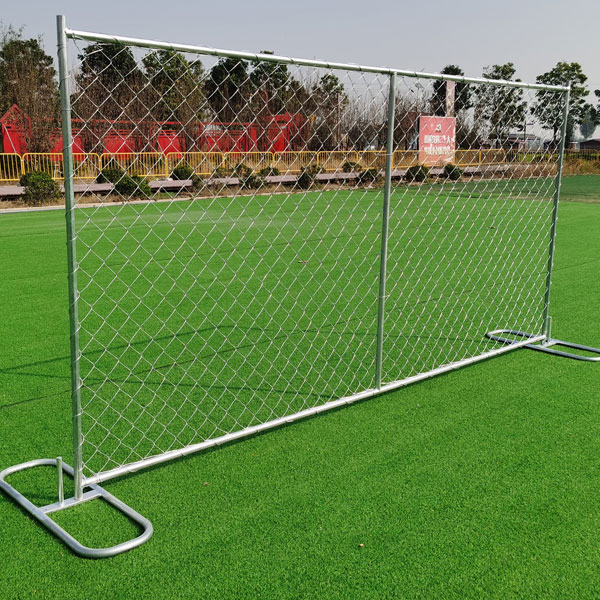

Details of the temporary fence
♥Both vertical and horizontal bracing to impact strength from outside and wind to be a durable panels
♥The vertical brace (centered in frame horizontally) increasin the strength and durability of the fence panel
♥The stands of temporary chain link fence size 16″ x 36″, with 1-3/8″ diameter tubing and slightly smaller uprights for panels to fit over.

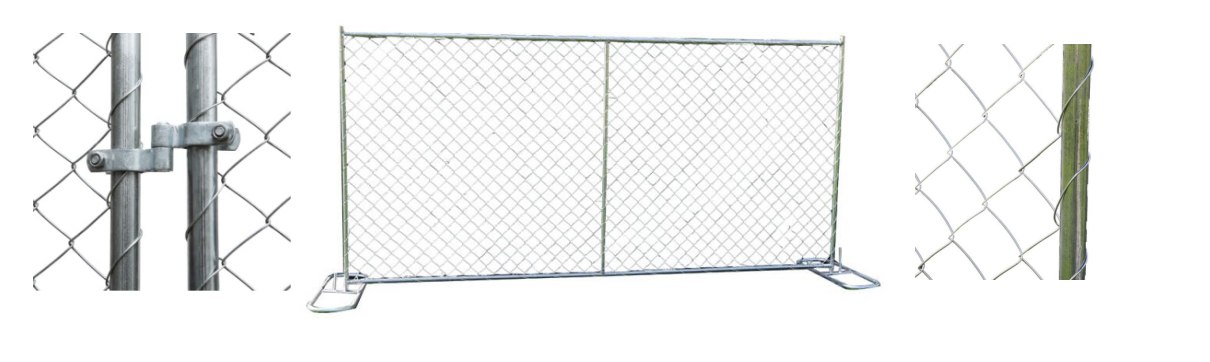

♥The panels are connected to each other with buckles, which can adapt to more complex road environments

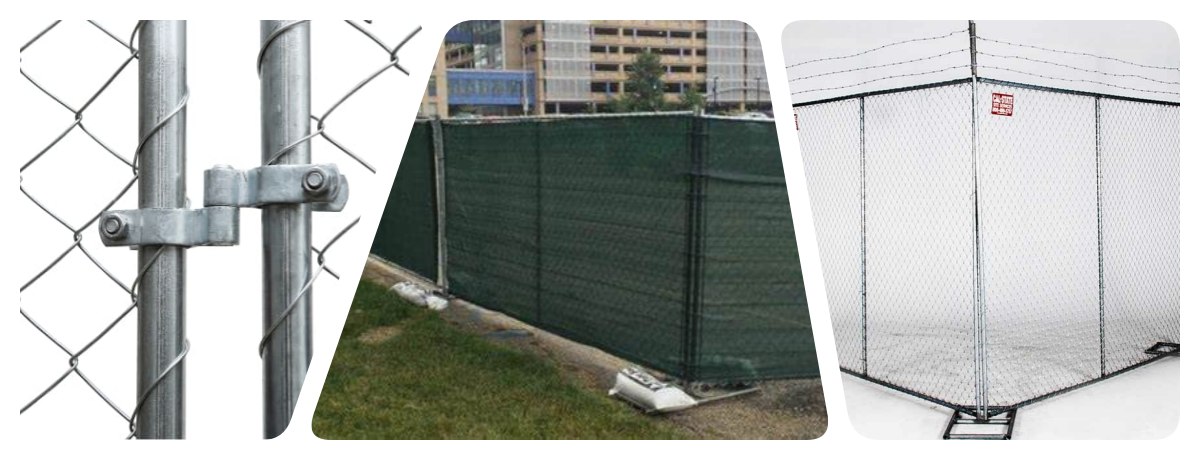

♥Polyethylene mesh as a privacy fence screen/windshield is suitable for chain fences 6 feet or 8 feet high, providing 88% privacy and 12% airflow.
♥The top of temporary iron chain fences and supporting gates that are 6 feet and 8 feet high can be equipped with barbed wire and razor barbed wire.
These protective devices can effectively prevent personnel from climbing freely. Please consider whether to install them according to local laws based on the specific situation
Chain link fence panel can be applied to many scenarios,such as,Well heads, tanks, valves, meter stations,hoarding excavations, equipment and material storage,garden centers, temporary sales areas, transformers and substations,etc.
Features
♥Permanent or temporary security
♥Ideal for remote, limited access or difficult to excavate sites
♥Easily and quickly installed
♥Completely re-useable and can be enlarged with additional panels
Our Haotian company provides comprehensive production services for modular portable fence boards. We produce a variety of inventory and special order sizes, styles, and specifications.
Please contact us further and we will provide you with more perfect solutions and cost-effective products
