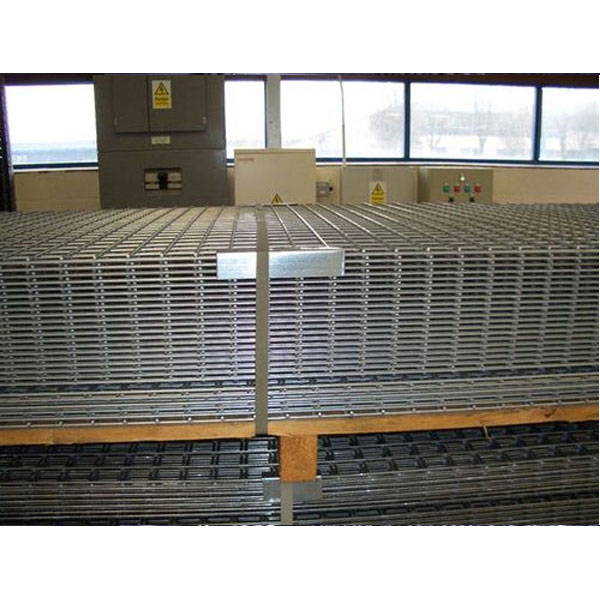

Galvanized Welded Mesh Panels is made of superior quality wire, with flat even surface, firm structure, be used extensively in construction, food, agriculture and so on.
Galvanized Welded Mesh Panels is made of superior quality wire, with flat even surface, firm structure, be used extensively in construction, food, agriculture and so on.

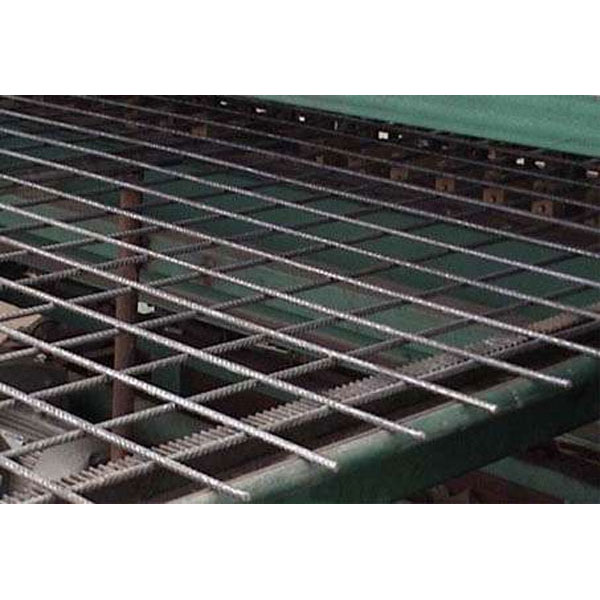

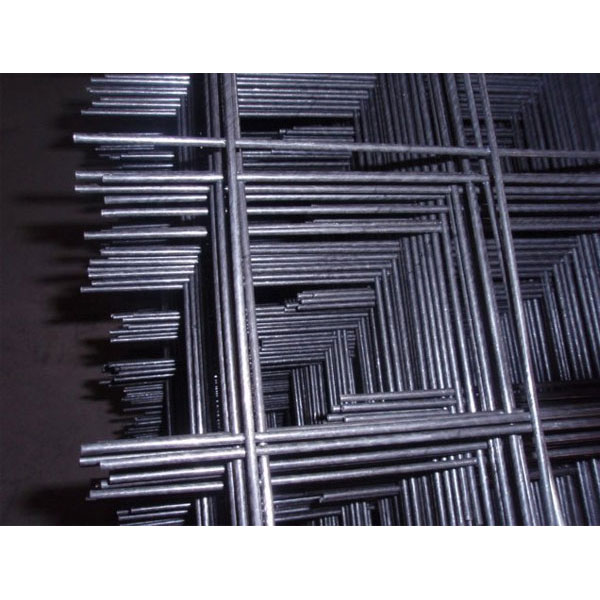

Black mesh panel could be used for concrete reinforcing.
Material: Low carbon steel wire, stainless steel wire
Surface treatment:Hot dip galvanizing after welding;Electro galvanizing after welding;Electrogalvanizing before welding;powder coated after welded
Specification List of Welded Wire Mesh Panel
| Opening (in inch) | In metric unit(mm) | Wire Diameter<BWG> |
| 1/4″ x 1/4″ | 6.4mm x 6.4mm | 22,23,24 |
|
3/8″ x 3/8″ |
10.6mm x 10.6mm |
19,20,21,22 |
|
1/2″ x 1/2″ |
12.7mm x 12.7mm |
16,17,18,19,20,21,22,23 |
|
5/8″ x 5/8″ |
16mm x 16mm |
18,19,20,21, |
|
3/4″ x 3/4″ |
19.1mm x 19.1mm |
16,17,18,19,20,21 |
|
3/4″ x 3/4″ |
19mm x 19mm |
16,17,18,19,20,21 |
|
1″ x 1″ |
25.4mm x 25.4mm |
15,16,17,18,19,20 |
|
1″ x 1/2″ |
25.4mm x 12.7mm |
16,17,18,19,20,21 |
|
1-1/2″ x 1-1/2″ |
38mm x 38mm |
14,15,16,17,18,19 |
|
1″ x 2″ |
25.4mm x 50.8mm |
14,15,16 |
|
2″ x 2″ |
50.8mm x 50.8mm |
12,13,14,15,16 |
|
2″ x 3″ |
50mm x 75mm |
14,13,16 |
|
3″ x 3″ |
75mm x 75mm |
12,13,14,15,16 |
|
2″ x 4″ |
50mm x 100mm |
13,14 |
|
4″ x 4″ |
100mm x 100mm |
13,14 |
